TPS62825DMQR Texas Instruments - Yeehing Electronics
2.4-V to 5.5-V input, 2-A step-down converter with 1% accuracy in 1.5-mm x 1.5-mm VSON-HR package
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.476 |
100 — 249 | 0.324 |
250 — 999 | 0.25 |
1,000 + | 0.12 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |

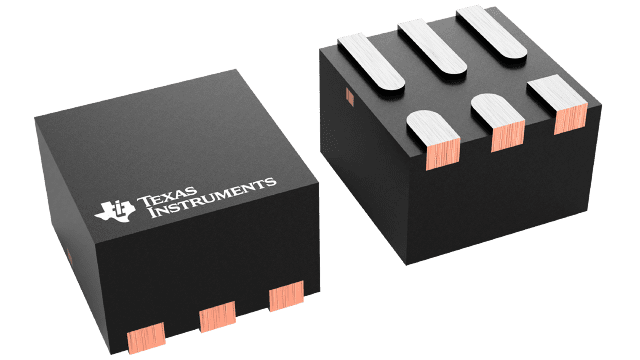

Package / Case | VSON-HR-6 |
Output Voltage | 0.6 V to 4 V |
Output Current | 2 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 5.5 V |
Topology | Buck |
Input Voltage MIN | 2.4 V |
Switching Frequency | 2.2 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS62825 |
Packaging | Reel |
Input Voltage | 2.4 V to 5.5 V |
Operating Temperature Range | - 40 C to + 125 C |
Quiescent Current | 4 uA |
Type | Step-Down Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Development Kit | TPS62825EVM-794 |
Load Regulation | 0.1 %/A |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2.4 V |
For more information, please refer to datasheet
Documents
TPS62825DMQR Datasheet |
More Information
The TPS6282x is an easy-to-use synchronous step-down DC-DC converters family with a very low quiescent current of only 4 µA. Based on the DCS-Control topology, it provides a fast transient response. The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of –40°C to 125°C. The family devices are pin-to-pin and BOM-to-BOM compatible. The entire solution requires a small 470-nH inductor, a single 4.7-µF input capacitor and two 10-µF or single 22-µF output capacitor.
