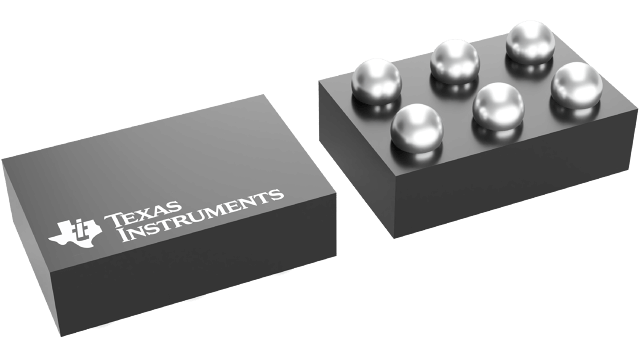

TPS6283810YFPR Texas Instruments - Yeehing Electronics
2.4V-5.5V input, tiny 6-pin 3-A step-down converter in 1.2-mm x 0.8-mm WCSP
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.257 |
100 — 249 | 1.038 |
250 — 999 | 0.746 |
1,000 + | 0.33 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-6 |
Output Voltage | 1 V |
Output Current | 3 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 5.5 V |
Topology | Buck |
Input Voltage MIN | 2.4 V |
Switching Frequency | 3.5 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS6283810 |
Packaging | Reel |
Input Voltage | 2.4 V to 5.5 V |
Quiescent Current | 4 uA |
Type | Step-Down Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Development Kit | TPS6283810EVM-078 |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2.4 V |
For more information, please refer to datasheet
Documents
TPS6283810YFPR Datasheet |
More Information
The device is a high-frequency synchronous step-down converter optimized for small solution size and high efficiency. With an input voltage range of 2.4 V to 5.5 V, common battery technologies are supported. At medium to heavy loads, the converter operates in PWM mode and automatically enters Power Save Mode operation at light load to maintain high efficiency over the entire load current range. The 3.5-MHz switching frequency allows the device to use small external components. Together with its DCS-control architecture, excellent load transient performance and output voltage regulation accuracy are achieved. Other features like over current protection, thermal shutdown protection, active output discharge and power good are built-in. The device is available in a 6-pin WCSP package.
