TPS62850220QDRLRQ1 Texas Instruments - Yeehing Electronics

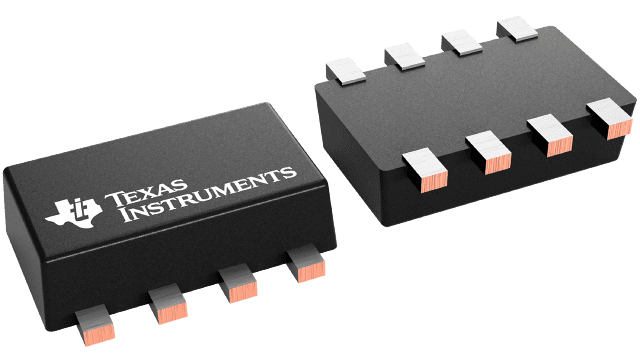

2.7-V to 6-V, 2-A automotive step-down converter in SOT583 package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.295 |
| 100 — 249 | 1.069 |
| 250 — 999 | 0.768 |
| 1,000 + | 0.40 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS62850220QDRLRQ1 Datasheet |
More Information
The TPS62850x-Q1 is a family of pin-to-pin 1-A, 2-A (continuous), and 3-A (peak) high efficiency, easy-to-use synchronous step-down DC/DC converters. They are based on a peak current mode control topology. They are designed for automotive applications such as infotainment and advanced driver assistance systems. Low resistive switches allow up to 2-A continuous output current and 3-A peak current. In the TPS62850x-Q1, the switching frequency is externally adjustable from 1.8 MHz to 4 MHz. The parts can also be synchronized to an external clock in the same frequency range. In PWM/PFM mode, the devices automatically enter power save mode at light loads to maintain high efficiency across the whole load range. The family provides a 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy.
