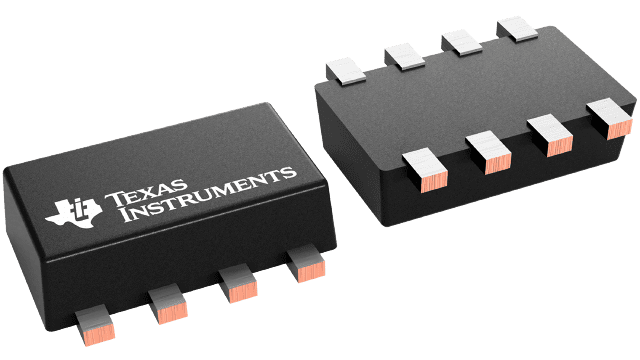

TPS629210DRLR-ET Texas Instruments - Yeehing Electronics
3-V to 17-V, 1-A, high-efficiency, synchronous buck converter with -55°C to 150°C temperature range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.313 |
| 100 — 249 | 1.151 |
| 250 — 999 | 0.807 |
| 1,000 + | 0.52 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS629210DRLR-ET Datasheet |
More Information
The TPS629210E device is a highly efficient, small, and highly flexible synchronous step-down DC-DC converter that easy to use. A wide 3-V to 1 7-V input voltage range supports a wide variety of systems powered from either 12-V, 5-V, or 3.3-V supply rails, or single-cell or multi-cell Li-Ion batteries. The TPS629210E can be configured to run at either 2.5 MHz or 1 MHz in a forced PWM mode or a variable frequency (auto PFM) mode. In auto PFM mode, the device automatically transitions to power save mode at light loads to maintain high efficiency. The low 4-µA typical quiescent current also provides high efficiency down to the smallest loads. TIs automatic efficiency enhancement (AEE) mode holds a high conversion efficiency through the whole operation range without the need of using different inductors by automatically adjusting the switching frequency based on input and output voltages. In addition to selecting the switching frequency behavior, the MODE/S-CONF input pin can also be used to select between different combinations of external and internal feedback dividers and enabling and disabling the output voltage discharge capability. In the internal feedback configuration, a resistor between the FB/VSET pin and GND can be used to select between 18 different output voltage options (see Table 8-2).
