TPS63011YFFR Texas Instruments - Yeehing Electronics

High Efficient Single Inductor Buck-Boost Converter with 2-A Switches

Pricing (USD)

Quantity	Unit Price
1 — 99	None
100 — 249	None
250 — 999	None
1,000 +	None

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

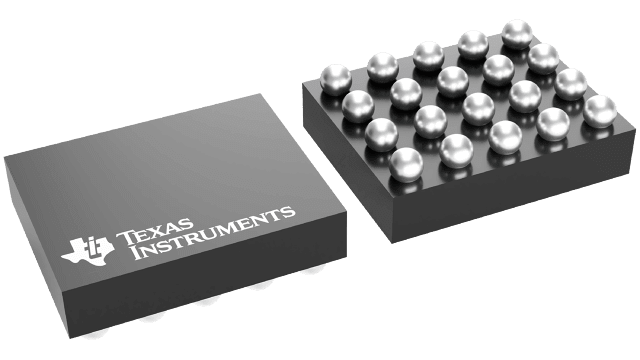

Package / Case	DSBGA-20
Output Voltage	2.8 V, 3.3 V
Output Current	2.2 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Boost, Buck
Input Voltage MIN	2 V
Switching Frequency	2.4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS63011
Packaging	Reel
Height	0.4 mm
Input Voltage	2 V to 5.5 V
Length	2.65 mm
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Switching Regulator
Width	2.25 mm
Brand	Texas Instruments
Load Regulation	0.5 %
Operating Supply Current	40 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000159 oz

For more information, please refer to datasheet

Documents

TPS63011YFFR Datasheet

More Information

The TPS6301x devices provide a power supply solution for products powered by either a two-cell or three-cell alkaline, NiCd or NiMH battery, or a one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 1200 mA while using a single-cell Li-Ion or Li-Polymer Battery, and discharge it down to 2.5 V or lower. The buck-boost converter is based on a fixed-frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power save mode to maintain high efficiency over a wide load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2200 mA. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 20-pin DSBGA package measuring 2.126 mm × 1.922 mm (YFF).
