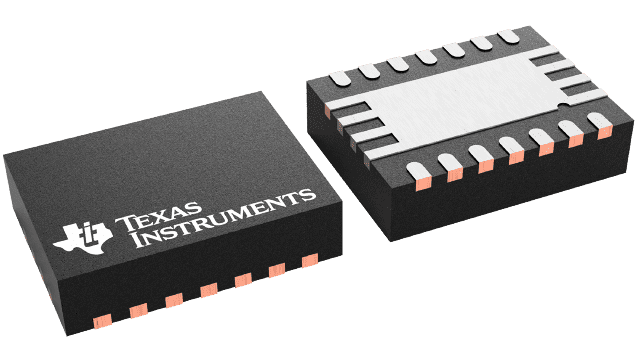

TPS63020QDSJRQ1 Texas Instruments - Yeehing Electronics

High Efficiency Automotive Single Inductor Buck-Boost Converter with 4A Switch

Pricing (USD)

Quantity	Unit Price
1 — 99	2.818
100 — 249	2.469
250 — 999	1.731
1,000 +	0.98

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VSON-14
Output Voltage	1.2 V to 5.5 V
Output Current	4 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Boost, Buck
Input Voltage MIN	1.8 V
Switching Frequency	2.4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
Series	TPS63020-Q1
Packaging	Reel
Input Voltage	1.8 V to 5.5 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	25 uA
Type	Buck-Boost Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPS63020EVM-487
Load Regulation	0.5 %
Moisture Sensitive	Yes
Operating Supply Current	50 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	1.8 V
Unit Weight	0.001203 oz

For more information, please refer to datasheet

Documents

TPS63020QDSJRQ1 Datasheet

More Information

The TPS63020-Q1 device provides a power supply solution for products powered by either a two-cell or three-cell alkaline, NiCd or NiMH battery, or a one-cell Li-Ion or Li-Polymer battery. Output currents can go as high as 3 A while using a single-cell Li-Ion or Li-Polymer battery, and discharge it down to 2.5 V or lower. The buck-boost converter is based on a fixed frequency, pulse width modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power save mode to maintain high efficiency over a wide load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 4 A. The output voltage is programmable using an external resistor divider. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 3 mm × 4 mm 14-pin VSON PowerPAD™ package (DSJ).
