TPS630252YFFR Texas Instruments - Yeehing Electronics

4A switch Single-Inductor Buck-Boost Converter in WCSP

Pricing (USD)

Quantity	Unit Price
1 — 99	1.456
100 — 249	1.203
250 — 999	0.864
1,000 +	0.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

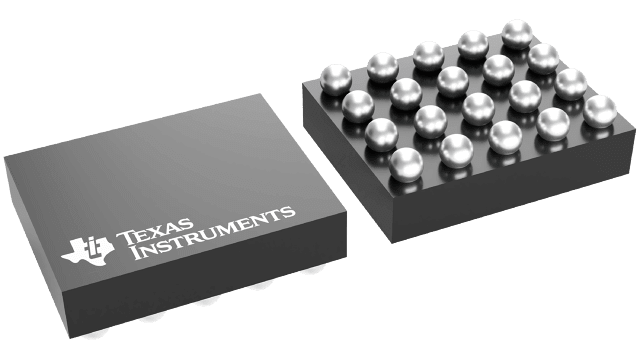

Package / Case	DSBGA-20
Output Voltage	3.3 V
Output Current	4.5 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Boost, Buck
Input Voltage MIN	2.3 V
Switching Frequency	2.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS630252
Packaging	Reel
Input Voltage	2.3 V to 5.5 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Buck/Boost Converter
Brand	Texas Instruments
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000152 oz

For more information, please refer to datasheet

Documents

TPS630252YFFR Datasheet

More Information

The TPS63025x are high efficiency, low quiescent current buck-boost converters suitable for application where the input voltage is higher or lower than the output. Output currents can go as high as 2 A in boost mode and as high as 4 A in buck mode. The maximum average current in the switches is limited to a typical value of 4 A. The TPS63025x regulates the output voltage over the complete input voltage range by automatically switching between buck or boost mode depending on the input voltage ensuring a seamless transition between modes. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain highest efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over the complete load current range. There is a PFM/PWM pin that allows the user to choose between automatic PFM/PWM mode operation and forced PWM operation. During PWM mode a fixed-frequency of typically 2.5 MHz is used. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 20-pin WCSP package measuring 1.766 mm × 2.086mm and 14-pin HotRod package measuring 2.5 mm × 3mm.
