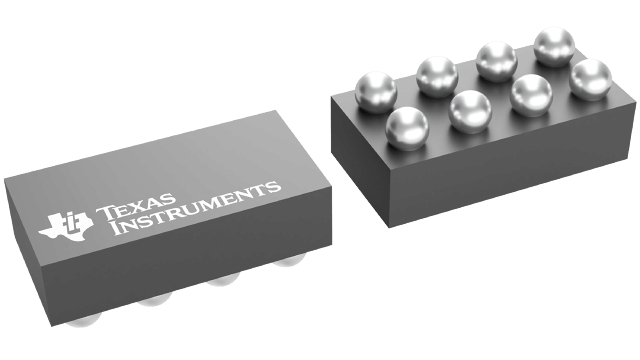

TPS63036YFGR Texas Instruments - Yeehing Electronics
High Efficient Single Inductor Buck-Boost Converter with 1-A Switches
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.112 |
100 — 249 | 0.855 |
250 — 999 | 0.63 |
1,000 + | 0.32 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-8 |
Output Voltage | 1.2 V to 5.5 V |
Output Current | 1 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 5.5 V |
Topology | Boost, Buck |
Input Voltage MIN | 1.8 V |
Switching Frequency | 2.4 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | TPS63036 |
Packaging | Reel |
Input Voltage | 1.8 V to 5.5 V |
Operating Temperature Range | - 40 C to + 85 C |
Product | Voltage Regulators |
Type | Voltage Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Load Regulation | 0.008 % / mA |
Operating Supply Current | 25 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 1.8 V |
Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
TPS63036YFGR Datasheet |
More Information
The TPS63036 is a non-inverting buck-boost converter able to provide a regulated output voltage from an input supply that can be higher or lower than the output voltage. The buck-boost converter is based on a fixed frequency, pulse width modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power save mode to maintain high efficiency over a wide load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency.
