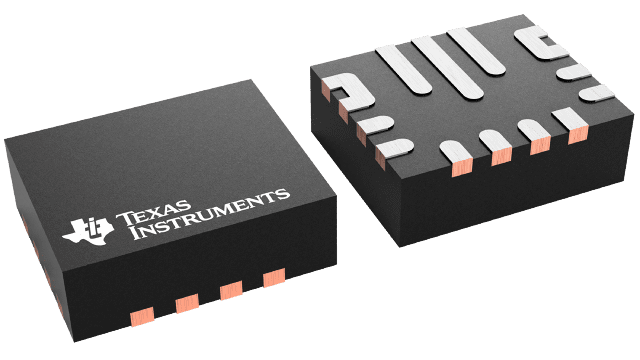

TPS630701RNMT Texas Instruments - Yeehing Electronics
Wide input voltage (2V-16V) buck-boost converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.44 |
| 100 — 249 | 2.138 |
| 250 — 999 | 1.499 |
| 1,000 + | 0.85 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-15 |
| Output Voltage | 5 V |
| Output Current | 3.6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 16 V |
| Topology | Boost, Buck |
| Input Voltage MIN | 2 V |
| Switching Frequency | 2.4 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS63070 |
| Packaging | Reel |
| Input Voltage | 2 V to 16 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 133 uA |
| Type | Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.2 %/A |
| Operating Supply Current | 50 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2 V |
| Unit Weight | 0.000624 oz |
For more information, please refer to datasheet
Documents
| TPS630701RNMT Datasheet |
More Information
The TPS6307x is a high efficiency, low quiescent current buck-boost converter suitable for applications where the input voltage can be higher or lower than the output voltage. Output currents can go as high as 2 A in boost mode and in buck mode. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over a wide load current range. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 2.5 mm x 3 mm QFN package.
