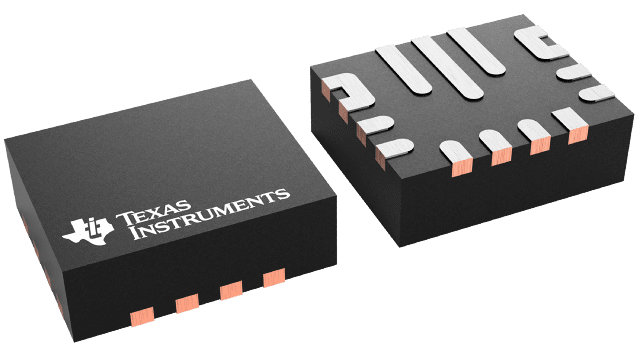

TPS630702RNMT Texas Instruments - Yeehing Electronics

Wide input voltage (2V-16V) buck-boost converter

Pricing (USD)

Quantity	Unit Price
1 — 99	2.706
100 — 249	2.235
250 — 999	1.605
1,000 +	0.85

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS630702RNMT Datasheet

More Information

The TPS6307x is a high efficiency, low quiescent current buck-boost converter suitable for applications where the input voltage can be higher or lower than the output voltage. Output currents can go as high as 2 A in boost mode and in buck mode. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over a wide load current range. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 2.5 mm x 3 mm QFN package.
