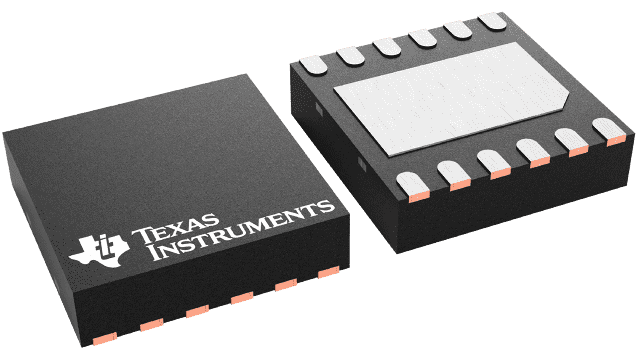

TPS63710DRRT Texas Instruments - Yeehing Electronics
Low Noise, 1A Synchronous Inverting Buck Converter in 3x3 WSON Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.343 |
| 100 — 249 | 2.053 |
| 250 — 999 | 1.44 |
| 1,000 + | 0.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-12 |
| Output Voltage | - 1 V to - 5.5 V |
| Output Current | 2.1 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 14 V |
| Topology | Buck |
| Input Voltage MIN | 3.1 V |
| Switching Frequency | 1500 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS63710 |
| Packaging | Reel |
| Input Voltage | 3.1 V to 14 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Inverting Buck Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS63710EVM-811 |
| Load Regulation | 0.02 %/V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 15 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.1 V |
| Unit Weight | 0.001009 oz |
For more information, please refer to datasheet
Documents
| TPS63710DRRT Datasheet |
