Texas Instruments

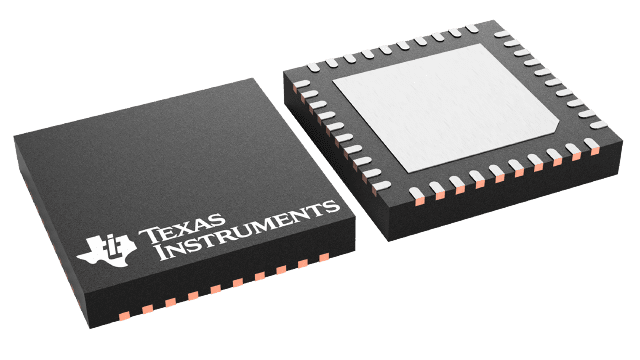

TPS65022RHAR
TPS65022RHAR
Regular price
$2.16 USD
Regular price
Sale price
$2.16 USD
Unit price
per
Couldn't load pickup availability
TPS65022RHAR Texas Instruments - Yeehing Electronics
Power Management IC (PMIC) for Li-Ion Powered Systems
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.68 |
| 100 — 249 | 4.631 |
| 250 — 999 | 3.64 |
| 1,000 + | 2.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 0.6 V to 6 V |
| Output Current | 1.2 A |
| Operating Supply Voltage | 2.5 V to 6 V |
| Operating Supply Current | 85 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | VQFN-40 |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 6 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS65022 |
| Type | Battery Monitoring |
| Width | 6 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| TPS65022RHAR Datasheet |
More Information
The TPS65022 is an integrated Power Management IC for applications powered by one Li-Ion or Li-Polymer cell, and which require multiple power rails. The TPS65022 provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor based system.
