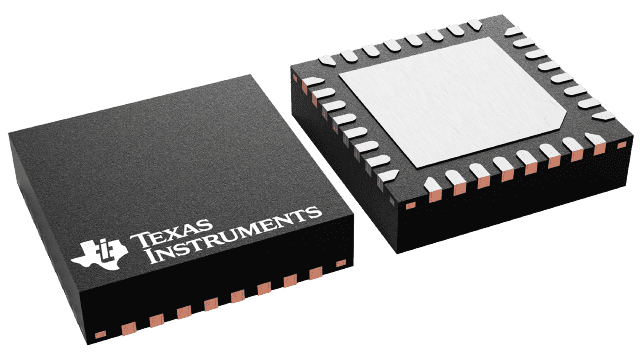

TPS65056RSMT Texas Instruments - Yeehing Electronics
Power Management IC (PMIC) with two DC/DCs and four LDOs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.074 |
| 100 — 249 | 3.321 |
| 250 — 999 | 2.61 |
| 1,000 + | 1.77 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 600 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Packaging | Reel |
| Application | S3C2410/2/3 |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS65056 |
| Brand | Texas Instruments |
| Development Kit | TPS65056EVM-195 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.4 mA |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001570 oz |
For more information, please refer to datasheet
Documents
| TPS65056RSMT Datasheet |
More Information
The TPS6505x family of devices are integrated power-management ICs for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS6505x devices provide two highly efficient, 2.25-MHz step-down converters targeted at providing the core voltage and I/O voltage in a processor-based system. Both step-down converters enter a low-power mode at light load for maximum efficiency across the widest possible range of load currents. For low noise applications, the devices can be forced into fixed-frequency PWM mode by pulling the MODE pin high. The TPS6505x devices also integrate two 400-mA LDO and two 200-mA LDO voltage regulators. Each LDO operates with an input voltage range from 1.5 V to 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the main battery.
