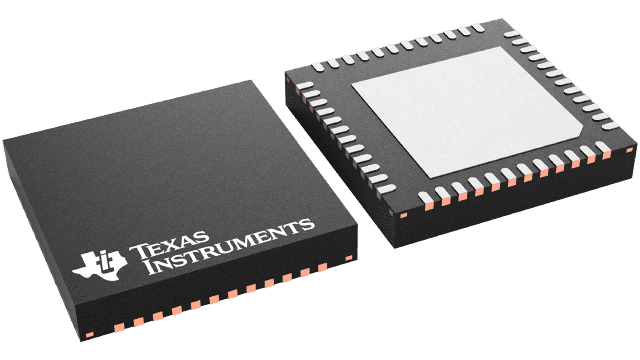

TPS65070RSLR Texas Instruments - Yeehing Electronics

Power Management IC (PMIC) with battery charger, three step-down converters and two LDOs

Pricing (USD)

Quantity	Unit Price
1 — 99	5.268
100 — 249	4.295
250 — 999	3.375
1,000 +	0.96

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Current	2 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-48
Type	Battery Charger
Packaging	Reel
Application	OMAP-L1xx, TMS320C674x
Operating Temperature Range	- 40 C to + 85 C
Product	PMIC
Series	TPS65070
Brand	Texas Instruments
Development Kit	TPS65070EVM-430
Moisture Sensitive	Yes
Operating Supply Current	80 uA
Operating Supply Voltage	6.3 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004938 oz

For more information, please refer to datasheet

Documents

TPS65070RSLR Datasheet

More Information

The TPS6507x family of devices are single-chip power management ICs (PMICs) for portable applications consisting of a battery charger with power path management for a single Li-Ion or Li-Polymer cell. The charger can either be supplied by a USB port on pin USB or by a DC voltage from a wall adapter connected to pin AC. Three highly efficient 2.25-MHz step-down converters are targeted at providing the core voltage, memory, and I/O voltage in a processor-based system. The step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents.
