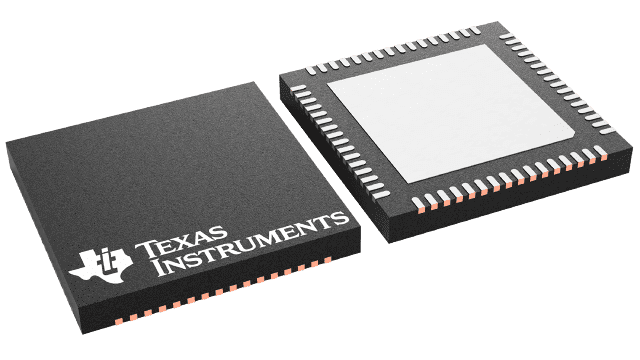

TPS65086100RSKR Texas Instruments - Yeehing Electronics
User programmable 3 converter, 3 controller, 4 LDO, & 3 load switch Power Management IC (PMIC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.036 |
| 100 — 249 | 5.736 |
| 250 — 999 | 4.508 |
| 1,000 + | 2.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Input Voltage Range | 5.6 V to 21 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-64 |
| Type | Configurable Multi-Rail PMIC |
| Packaging | Reel |
| Application | Various - configurable settings |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | PMICs |
| Series | TPS650861 |
| Brand | Texas Instruments |
| Development Kit | TPS650860EVM-116 |
| Operating Supply Voltage | 5.6 V to 21 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS65086100RSKR Datasheet |
More Information
The TPS650861 device family is a single-chip power-management IC (PMIC) designed to be programmed for optimal output voltages and sequencing. The TPS650861 has three controllers to provide flexible power capable of up to 30A with large external FETs for high power designs but which can scale down in both size and cost for smaller designs. Combined with three 3 A converters, three general purpose LDOs, a termination LDO for DDR, and three load switches, the TPS650861 can provide system power for a wide variety of applications. The D-CAP2™ and DCS-Control high-frequency voltage regulators use small passives to achieve a small solution size. The D-CAP2 and DCS-Control topologies have excellent transient response performance, ideal for processor core and system memory rails that have fast load switching. The device has two banks of one-time programmable (OTP) memory. For large volume opportunities, please contact a local TI sales representative to determine if use of TIs manufacturing for a custom OTP is available. Third party distributors may also support programming of the TPS650861.
