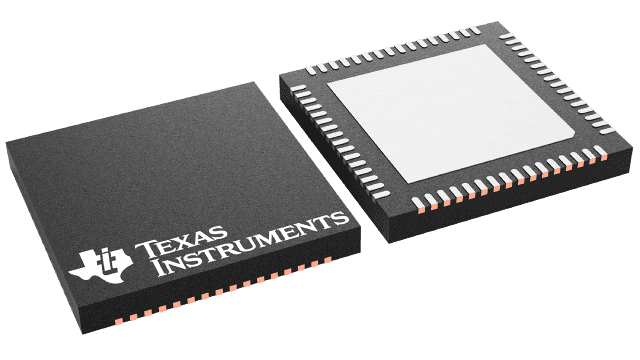

TPS6508641RSKR Texas Instruments - Yeehing Electronics

Configurable multi-rail PMIC for Xilinx MPSoCs and FPGAs

Pricing (USD)

Quantity	Unit Price
1 — 99	7.036
100 — 249	5.736
250 — 999	4.508
1,000 +	1.71

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Current	3 A
Input Voltage Range	5.6 V to 21 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-64
Type	Configurable Multirail PMU
Packaging	Reel
Application	Zynq UltraScale+
Operating Temperature Range	- 40 C to + 85 C
Product	PMIC
Series	TPS650864
Brand	Texas Instruments
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

TPS6508641RSKR Datasheet

More Information

The TPS650864 device family is a single-chip power-management IC (PMIC) designed for Xilinx Zynq multiprocessor system-on-chip (MPSoCs) and field programmable gate array (FPGA) families. The TPS650864 offers an input range of 5.6 V to 21 V, enabling a wide range of applications (see the Device Comparison Table). The device is targeted for wall-powered applications or 2S, 3S, or 4S Li-Ion battery packs (NVDC or non-NVDC power architectures). See the Typical Application section for 5-V input supplies. The D-CAP2 and DCS-Control high-frequency voltage regulators use small passives to achieve a small solution size. The D-CAP2 and DCS-Control topologies have excellent transient response performance, ideal for processor core and system memory rails that have fast load switching. An I2C interface allows simple control either by an embedded controller (EC) or by an SoC. The PMIC comes in an 8-mm × 8-mm, single-row VQFN package with thermal pad for good thermal dissipation.
