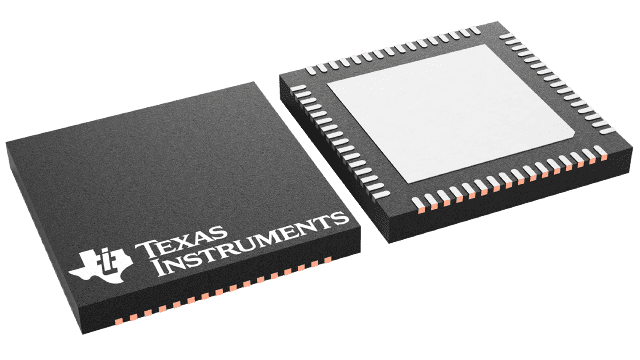

TPS6508641RSKT


YeeHing #: Y012-TPS6508641RSKT
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS6508641RSKT Texas Instruments - Yeehing Electronics

Configurable multi-rail PMIC for Xilinx MPSoCs and FPGAs

Pricing (USD)

Quantity Unit Price
1 — 99 8.444
100 — 249 6.884
250 — 999 5.41
1,000 + 3.21

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Management Specialized - PMIC
RoHS Y
Output Current 3 A
Input Voltage Range 5.6 V to 21 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case VQFN-64
Type Configurable Multirail PMU
Packaging Reel
Application Zynq UltraScale+
Operating Temperature Range - 40 C to + 85 C
Product PMIC
Series TPS650864
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Power Management Specialized - PMIC
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.005475 oz

For more information, please refer to datasheet

Documents

TPS6508641RSKT Datasheet

More Information

The TPS650864 device family is a single-chip power-management IC (PMIC) designed for Xilinx Zynq multiprocessor system-on-chip (MPSoCs) and field programmable gate array (FPGA) families. The TPS650864 offers an input range of 5.6 V to 21 V, enabling a wide range of applications (see the Device Comparison Table). The device is targeted for wall-powered applications or 2S, 3S, or 4S Li-Ion battery packs (NVDC or non-NVDC power architectures). See the Typical Application section for 5-V input supplies. The D-CAP2 and DCS-Control high-frequency voltage regulators use small passives to achieve a small solution size. The D-CAP2 and DCS-Control topologies have excellent transient response performance, ideal for processor core and system memory rails that have fast load switching. An I2C interface allows simple control either by an embedded controller (EC) or by an SoC. The PMIC comes in an 8-mm × 8-mm, single-row VQFN package with thermal pad for good thermal dissipation.
