Texas Instruments
TPS65090ARVNR
TPS65090ARVNR
Couldn't load pickup availability

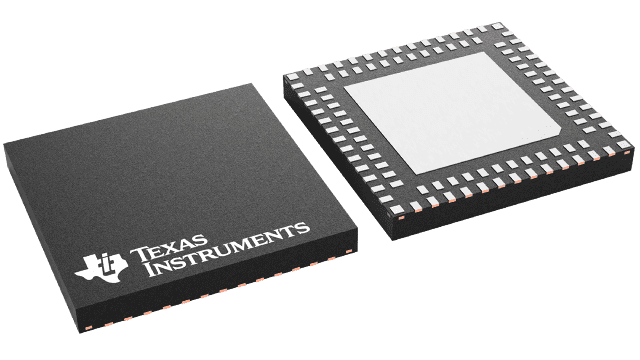

TPS65090ARVNR Texas Instruments - Yeehing Electronics
6-V to 7-V Power Management IC (PMIC) with switchmode charger, 3 DCDCs, 2 LDOs, and 7 load switches
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.522 |
| 100 — 249 | 9.393 |
| 250 — 999 | 7.383 |
| 1,000 + | 4.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 4 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS65090 |
| Brand | Texas Instruments |
| Development Kit | TPS65090EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 30 uA |
| Operating Supply Voltage | 6 V to 17 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS65090ARVNR Datasheet |
More Information
The TPS65090A device is a single-chip power management IC for portable applications consisting of a battery charger with power path management for a dual or triple Li-Ion or Li-Polymer cell battery pack. The charger can be directly connected to an external wall adapter. Three highly efficient step-down converters are targeted for providing a fixed 5-V system voltage, a fixed 3.3-V system voltage, and an adjustable voltage rail. The step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents. The step-down converters allow the use of small inductors and capacitors to achieve a small solution size. The TPS65090A also integrates two general-purpose always-on LDOs for powering circuit blocks which control the system while shut down. Each LDO operates with an input voltage range from 6 V to 17 V, allowing the LDOs to be supplied from the wall adapter or directly from the main battery pack.
