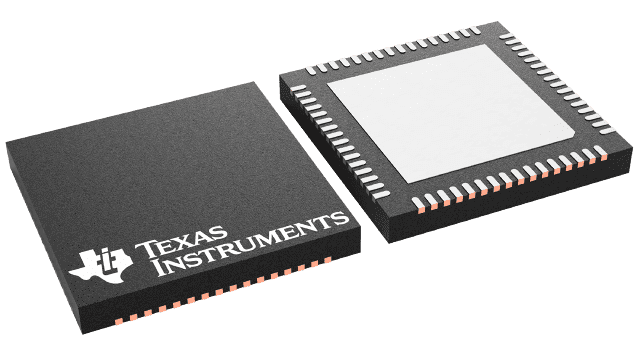

TPS650940A0RSKT Texas Instruments - Yeehing Electronics

Programmable mid input voltage range Power Management IC (PMIC) for Apollo Lake processors

Pricing (USD)

Quantity	Unit Price
1 — 99	5.877
100 — 249	4.791
250 — 999	3.766
1,000 +	2.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Current	3 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QFN-64
Packaging	Reel
Application	Apollo Lake
Operating Temperature Range	- 40 C to + 85 C
Product	Power Management IC
Series	TPS65094
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.005475 oz

For more information, please refer to datasheet

Documents

TPS650940A0RSKT Datasheet

More Information

The TPS65094 device is a single-chip solution, power-management integrated chip (PMIC) designed specifically for the latest Intel™ processors targeted for tablets, ultrabooks, notebooks, industrial PCs, and Internet-of-Things (IOT) applications using 2S, 3S, or 4S Li-Ion battery packs (NVDC or non-NVDC power architectures), as well as wall-powered applications. The TPS65094 device is used for essential systems with low-voltage rails merged for the smallest footprint and lowest-cost system-power solution. The TPS65094 device provides the complete power solution based on the Intel Reference Designs. Six highly efficient step-down voltage regulators (VRs), a sink or source LDO (VTT), and a load switch are controlled by power-up sequence logic to provide the proper power rails, sequencing, and protection—including DDR3 and DDR4 memory power. The two regulators (BUCK1 and BUCK2) support dynamic voltage scaling (DVS) for maximum efficiency—including support for Connected Standby. The high-frequency VRs use small inductors and capacitors to achieve a small solution size. An I2C interface allows simple control by an embedded controller (EC) or by a system on chip (SoC).
