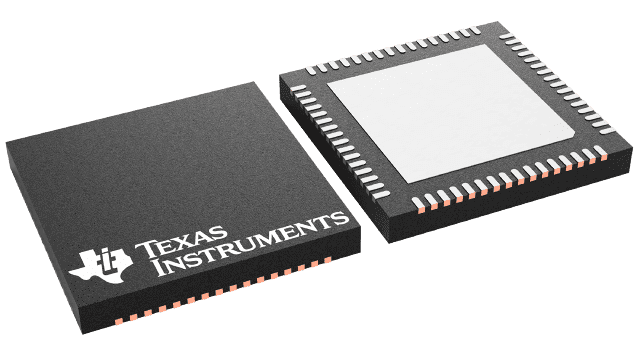

TPS650944A0RSKR


YeeHing #: Y012-TPS650944A0RSKR
Inventory: 4400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS650944A0RSKR Texas Instruments - Yeehing Electronics

Programmable mid input voltage range Power Management IC (PMIC) for Apollo Lake processors

Pricing (USD)

Quantity Unit Price
1 — 99 4.898
100 — 249 3.993
250 — 999 3.138
1,000 + 1.86

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Management Specialized - PMIC
RoHS Y
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case VQFN-64
Packaging Reel
Application Apollo Lake
Operating Temperature Range - 40 C to + 85 C
Series TPS65094
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Power Management Specialized - PMIC
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

TPS650944A0RSKR Datasheet

More Information

The TPS65094 device is a single-chip solution, power-management integrated chip (PMIC) designed specifically for the latest Intel™ processors targeted for tablets, ultrabooks, notebooks, industrial PCs, and Internet-of-Things (IOT) applications using 2S, 3S, or 4S Li-Ion battery packs (NVDC or non-NVDC power architectures), as well as wall-powered applications. The TPS65094 device is used for essential systems with low-voltage rails merged for the smallest footprint and lowest-cost system-power solution. The TPS65094 device provides the complete power solution based on the Intel Reference Designs. Six highly efficient step-down voltage regulators (VRs), a sink or source LDO (VTT), and a load switch are controlled by power-up sequence logic to provide the proper power rails, sequencing, and protection—including DDR3 and DDR4 memory power. The two regulators (BUCK1 and BUCK2) support dynamic voltage scaling (DVS) for maximum efficiency—including support for Connected Standby. The high-frequency VRs use small inductors and capacitors to achieve a small solution size. An I2C interface allows simple control by an embedded controller (EC) or by a system on chip (SoC).
