Description

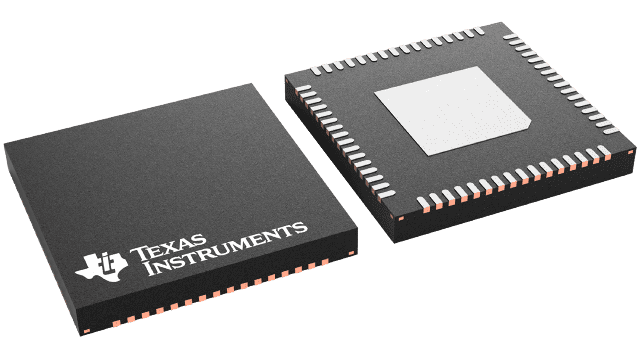

TPS650947A0RSKT Texas Instruments - Yeehing Electronics
Programmable mid input voltage range Power Management IC (PMIC) for Apollo Lake processors
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.877 |
| 100 — 249 | 4.791 |
| 250 — 999 | 3.766 |
| 1,000 + | 2.56 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS650947A0RSKT Datasheet |
More Information
The TPS65094 device is a single-chip solution, power-management integrated chip (PMIC) designed specifically for the latest Intel™ processors targeted for tablets, ultrabooks, notebooks, industrial PCs, and Internet-of-Things (IOT) applications using 2S, 3S, or 4S Li-Ion battery packs (NVDC or non-NVDC power architectures), as well as wall-powered applications. The TPS65094 device is used for essential systems with low-voltage rails merged for the smallest footprint and lowest-cost system-power solution. The TPS65094 device provides the complete power solution based on the Intel Reference Designs. Six highly efficient step-down voltage regulators (VRs), a sink or source LDO (VTT), and a load switch are controlled by power-up sequence logic to provide the proper power rails, sequencing, and protection—including DDR3 and DDR4 memory power. The two regulators (BUCK1 and BUCK2) support dynamic voltage scaling (DVS) for maximum efficiency—including support for Connected Standby. The high-frequency VRs use small inductors and capacitors to achieve a small solution size. An I2C interface allows simple control by an embedded controller (EC) or by a system on chip (SoC).
