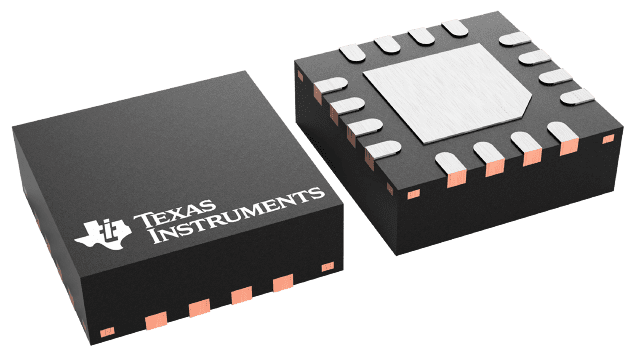

TPS65120RGTT Texas Instruments - Yeehing Electronics
4-CH Single Inductor Multiple Outputs (SIMO) Bias IC w/ Fixed 3.3V Vlogic
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.291 |
| 100 — 249 | 2.007 |
| 250 — 999 | 1.407 |
| 1,000 + | 0.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Voltage Range | 3 V to 5.6 V |
| Output Current | 25 mA |
| Input Voltage Range | 2.5 V to 5.5 V |
| Input Current | 140 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Type | LCD Bias |
| Packaging | Reel |
| Application | LCD Displays |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | LCD Supplies |
| Series | TPS65120 |
| Brand | Texas Instruments |
| Development Kit | TPS65120EVM-076 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 140 uA |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000808 oz |
For more information, please refer to datasheet
Documents
| TPS65120RGTT Datasheet |
More Information
The TPS6512x DC-DC converter supplies all three voltages required by amorphous-silicon (a-Si) and low-temperature poly-silicon (LTPS) TFT-LCD displays. The compact layout of the TPS6512x uses a single inductor to generate independently-regulated positive and negative outputs. A free-running variable peak current PWM control scheme time-multiplexes the inductor between outputs. This control architecture operates at a pseudo-fixed-frequency to provide fast response to line and load transients while maintaining a relatively constant switching frequency and high efficiency over a wide range of input and output voltages. Due to the high switching frequency capability of the device, inexpensive and ultra-thin 8.2 or 10 µH inductors can be used.
