Texas Instruments
TPS65132AYFFR
TPS65132AYFFR
Couldn't load pickup availability
TPS65132AYFFR Texas Instruments - Yeehing Electronics
Split-Rail, Single Inductor Dual Output Converter with Positive and Negative Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.719 |
| 100 — 249 | 0.63 |
| 250 — 999 | 0.442 |
| 1,000 + | 0.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Drivers |
| RoHS | Y |
| Series | TPS65132 |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Supply Current - Max | 0.7 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

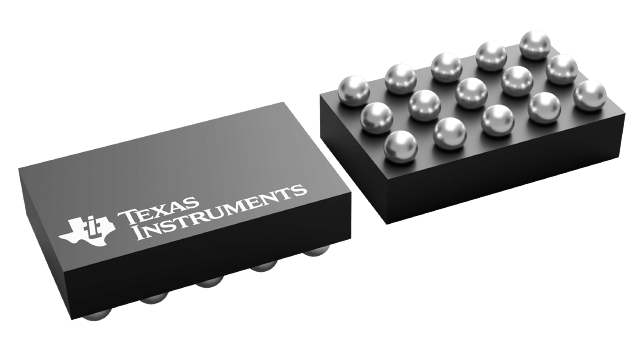

| Package / Case | DSBGA-15 |
| Packaging | Reel |
| Features | I2C, programming sequencing |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Dual Output LCD Bias |
| Brand | Texas Instruments |
| Product Type | LCD Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000127 oz |
For more information, please refer to datasheet
Documents
| TPS65132AYFFR Datasheet |
More Information
The TPS65132 family is designed to supply positive/negative driven applications. The device uses a single inductor scheme for both outputs to provide the user smallest solution size, a small bill-of-material as well as high efficiency. The devices offer best line and load regulation at low noise. With its input voltage range of 2.5 V to 5.5 V, it is optimized for products powered by single-cell batteries (Li-Ion, Ni-Li, Li-Polymer) and fixed 3.3-V and 5-V rails. The TPS656132 family provides 80 mA and 150 mA output current options with programmability to 40 mA. There are both CSP and QFN package options available.
