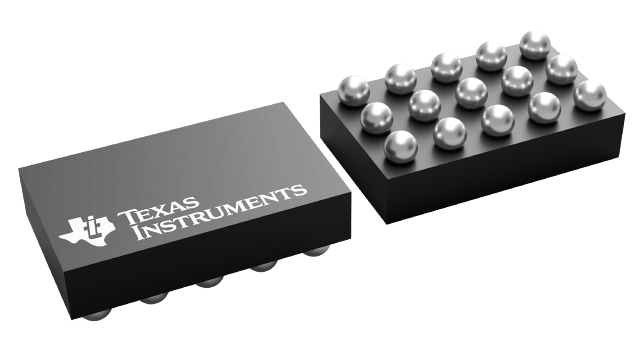

TPS65132B2YFFR Texas Instruments - Yeehing Electronics

Split-Rail, Single Inductor Dual Output Converter with Positive and Negative Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.719
100 — 249	0.63
250 — 999	0.442
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LCD Drivers
RoHS	Y
Series	TPS65132
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Product Type	LCD Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000127 oz

For more information, please refer to datasheet

Documents

TPS65132B2YFFR Datasheet

More Information

The TPS65132 family is designed to supply positive/negative driven applications. The device uses a single inductor scheme for both outputs to provide the user smallest solution size, a small bill-of-material as well as high efficiency. The devices offer best line and load regulation at low noise. With its input voltage range of 2.5 V to 5.5 V, it is optimized for products powered by single-cell batteries (Li-Ion, Ni-Li, Li-Polymer) and fixed 3.3-V and 5-V rails. The TPS656132 family provides 80 mA and 150 mA output current options with programmability to 40 mA. There are both CSP and QFN package options available.
