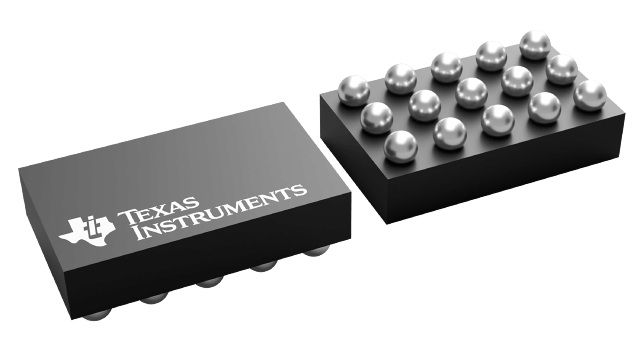

TPS65132SYFFR Texas Instruments - Yeehing Electronics
Single Inductor - Dual Output Power Supply for Bipolar, Small-/Medium-Size Displays
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.183 |
| 100 — 249 | 0.977 |
| 250 — 999 | 0.702 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS65132SYFFR Datasheet |
More Information
The TPS65132 family is designed to supply positive/negative driven applications. The device uses a single inductor scheme for both outputs to provide the user smallest solution size, a small bill-of-material as well as high efficiency. The devices offer best line and load regulation at low noise. With its input voltage range of 2.5 V to 5.5 V, it is optimized for products powered by single-cell batteries (Li-Ion, Ni-Li, Li-Polymer) and fixed 3.3-V and 5-V rails. The TPS656132 family provides 80 mA and 150 mA output current options with programmability to 40 mA. There are both CSP and QFN package options available.
