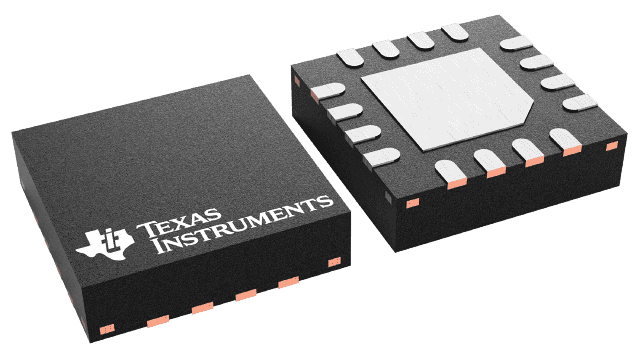

TPS65136RTER Texas Instruments - Yeehing Electronics

Single Inductor Multiple Outputs (SIMO) for Positive and Negative Output

Pricing (USD)

Quantity	Unit Price
1 — 99	1.511
100 — 249	1.324
250 — 999	0.928
1,000 +	0.52

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	2 Channel
Input Voltage	2.3 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-16
Series	TPS65136
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Type	AMOLED Bias
Brand	Texas Instruments
Development Kit	TPS65136EVM-265
Moisture Sensitive	Yes
Operating Supply Voltage	2.3 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000716 oz

For more information, please refer to datasheet

Documents

TPS65136RTER Datasheet

More Information

The TPS65136 is designed to provide best-in-class picture quality for active-matrix OLED (AMOLED) displays that require positive and negative supply rails. With its wide input voltage range, the device is ideally suited for AMOLED displays, which are used in mobile phones or SmartPhone™ devices. With the new single-inductor multiple-output (SIMO) technology, the smallest possible solution size is achieved. The device operates with a buck-boost topology and generates both positive and negative output voltages above or below the input voltage rail. The SIMO technology enables excellent line and load regulation. Excellent line-transient regulation is required to avoid disturbance of the AMOLED display as a result of input voltage variations that occur during transmit periods in mobile communication systems.
