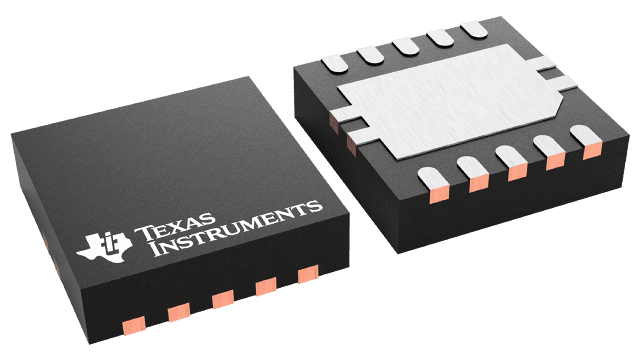

TPS65137ADSCR Texas Instruments - Yeehing Electronics
Dual Positive and Negative Outputs w/ Digital Vneg Adjustment
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.676 |
100 — 249 | 1.384 |
250 — 999 | 0.994 |
1,000 + | 0.52 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Number of Channels | 2 Channel |
Input Voltage | 2.3 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WSON-10 |
Series | TPS65137 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 85 C |
Type | AMOLED Bias |
Brand | Texas Instruments |
Development Kit | TPS65137AEVM-366 |
Moisture Sensitive | Yes |
Operating Supply Voltage | 2.3 V to 5.5 V |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 3000 |
Subcategory | Driver ICs |
Unit Weight | 0.000744 oz |
For more information, please refer to datasheet
Documents
TPS65137ADSCR Datasheet |
More Information
The TPS65137 is designed to provide best in class picture quality for AMOLED displays (Active Matrix Organic Light Emitting Diode) requiring positive and negative voltage supply rails. With its wide input voltage range the device is ideally suited for AMOLED displays, which are used in mobile phones and smart phones. With this device the input voltage can be higher than the positive output voltage and still maintains accurate regulation of VPOS. Using the digital control pin (CTRL) allows adjusting the negative output voltage in digital steps. The TPS65137 uses a novel technology enabling excellent line and load regulation with minimum output voltage ripple by using a LDO post regulator for VPOS. This is required avoiding disturbance of the AMOLED display due to input voltage transients occurring during transmit periods in mobile phones.
