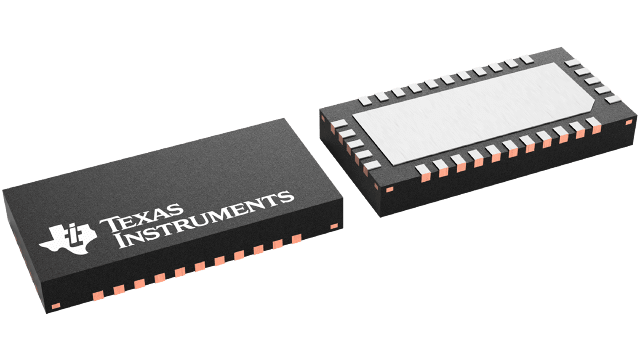

TPS65142RTGR Texas Instruments - Yeehing Electronics
LCD Bias Solution For LCD Panels with 6ch WLED Driver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.24 |
100 — 249 | 1.963 |
250 — 999 | 1.376 |
1,000 + | 0.78 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LCD Drivers |
RoHS | Y |
Series | TPS65142 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-32 |
Packaging | Reel |
Features | 6 channel backlight driver, LCD discharge, reset (/XAO) |
Operating Temperature Range | - 40 C to + 85 C |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | LCD Drivers |
Factory Pack Quantity | 3000 |
Subcategory | Driver ICs |
Unit Weight | 0.001594 oz |
For more information, please refer to datasheet
Documents
TPS65142RTGR Datasheet |
More Information
The TPS65142 provides a compact solution to the bias power and the WLED backlight in note-pc TFT-LCD panels. The device features a boost converter, a positive charge pump regulator, and a negative charge pump regulator to power the source drivers and the gate drivers. A 150 mA unity-gain high-speed buffer is offered to drive the VCOM plane. Gate voltage shaping and the LCD discharge function are offered to improve the image quality. A reset function allows a proper reset of the TCON at the power on. The TPS65142 also offers the complete solution to driver up to 6 chains of WLEDs with 1000:1 ratio PWM dimming.
