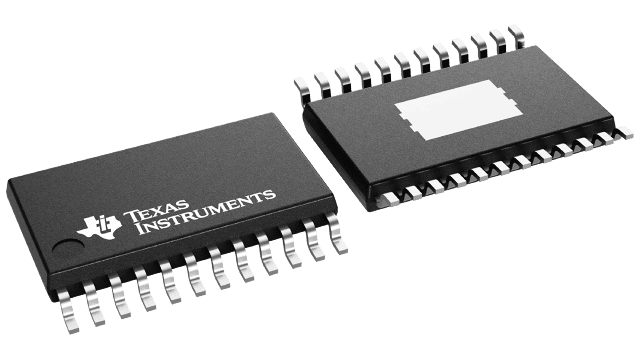

TPS65150QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive, compact LCD bias Power Supply with integrated VCOM Buffer
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.484 |
100 — 249 | 2.025 |
250 — 999 | 1.592 |
1,000 + | 0.94 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Management Specialized - PMIC |
RoHS | Y |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-24 |
Type | LCD Bias,VCOM |
Qualification | AEC-Q100 |
Packaging | Reel |
Series | TPS65150-Q1 |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Current | 14 uA |
Operating Supply Voltage | 1.8 V to 6 V |
Product Type | Power Management Specialized - PMIC |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.006081 oz |
For more information, please refer to datasheet
Documents
TPS65150QPWPRQ1 Datasheet |
More Information
The TPS65150-Q1 is an integrated power-supply for automotive LCD applications. The device integrates a boost converter for the source voltage and two regulated adjustable charge pump drivers for the gate voltages. For reduced external cost, improved picture quality and reduced image sticking, the device includes a VCOM buffer and a gate-voltage shaping function.
