Texas Instruments
TPS65175BRSHR
TPS65175BRSHR
Regular price
$1.13 USD
Regular price
Sale price
$1.13 USD
Unit price
per
Couldn't load pickup availability

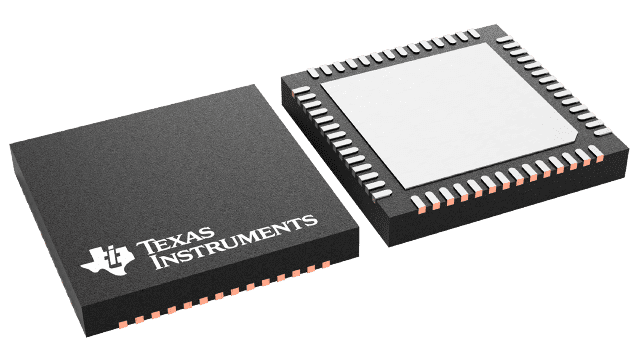

TPS65175BRSHR Texas Instruments - Yeehing Electronics
Fully Programmable LCD Bias IC for GIP TV with 12-Ch LvL Shifters, Gamma Buffers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.591 |
| 100 — 249 | 2.112 |
| 250 — 999 | 1.66 |
| 1,000 + | 1.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Drivers |
| RoHS | Y |
| Series | TPS65175B |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | VQFN-56 |
| Packaging | Reel |
| Features | Level Shifter/Scan Driver(Ch) |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LCD Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.007055 oz |
For more information, please refer to datasheet
Documents
| TPS65175BRSHR Datasheet |
More Information
The TPS65175B/C provides a simple and economic power supply solution for a wide variety of LCD bias applications. The device provides all supply rails needed by a TFT-LCD panel but also 6 gamma references, a supply rail for LVDS support, as well as a Vcom reference. The device also integrates a VCOM_DAC rail providing the reference for an external non-inverting operational amplifier input. A 12-Channel Level Shifter is also integrated. The solution is delivered in a small 7×7 mm QFN package.
