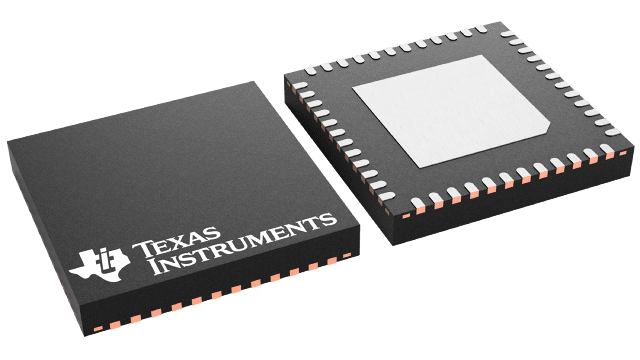

TPS65180BRGZR Texas Instruments - Yeehing Electronics
PMIC for E Ink Vizplex Enabled Electronic Paper Display
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.541 |
| 100 — 249 | 3.702 |
| 250 — 999 | 2.91 |
| 1,000 + | 1.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Type | eInk Bias |
| Packaging | Reel |
| Operating Temperature Range | - 10 C to + 85 C |
| Product | LCD Gamma Buffers |
| Series | TPS65180B |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| TPS65180BRGZR Datasheet |
More Information
The TPS6518x and TPS65181xB family of devices are single-chip power supplies designed to for E Ink Vizplex displays used in portable e-reader applications and support panel sizes up to 9.7 inches. Two high-efficiency DCDC boost converters generate ±17-V rails which are boosted to 22 V and 20 V by two change pumps to provide the gate driver supply for the Vizplex panel. Two tracking LDOs create the ±15-V source driver supplies which support up to 120-mA of output current. All rails are adjustable through the I2C interface to accommodate specific panel requirements.
