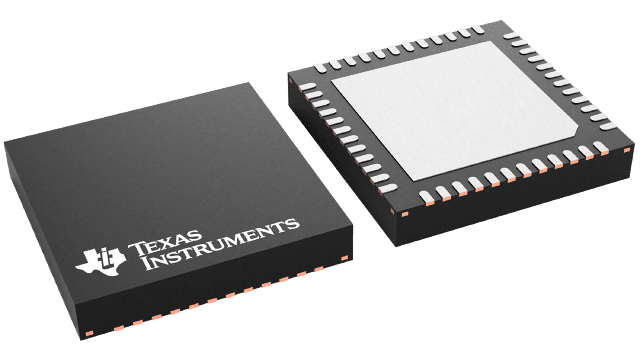

TPS651851RSLT Texas Instruments - Yeehing Electronics
PMIC for E-Ink® Vizplex™ Enabled Electronic Paper Display w/ Active Discharge
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.056 |
100 — 249 | 2.678 |
250 — 999 | 1.878 |
1,000 + | 1.06 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Management Specialized - PMIC |
RoHS | Y |
Output Current | 120 mA, 200 mA |
Input Voltage Range | 3 V to 6 V |
Input Current | 5 mA |
Minimum Operating Temperature | - 10 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-48 |
Type | eInk Bias |
Packaging | Reel |
Operating Temperature Range | - 10 C to + 85 C |
Product | PMIC |
Series | TPS65185x |
Brand | Texas Instruments |
Development Kit | TPS65185EVM |
Moisture Sensitive | Yes |
Operating Supply Current | 5.5 mA |
Operating Supply Voltage | 3.7 V |
Pd - Power Dissipation | 2 W |
Product Type | Power Management Specialized - PMIC |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.003584 oz |
For more information, please refer to datasheet
Documents
TPS651851RSLT Datasheet |
More Information
The TPS65185x device is a single-chip power supply designed to for E Ink Vizplex displays used in portable e-reader applications, and the device supports panel sizes up to 9.7 inches and greater. Two high efficiency DC-DC boost converters generate ±16-V rails that are boosted to 22 V and –20 V by two change pumps to provide the gate driver supply for the Vizplex panel. Two tracking LDOs create the ±15-V source driver supplies that support up to 120/200 mA (TPS65185/TPS651851) of output current. All rails are adjustable through the I2C interface to accommodate specific panel requirements.
