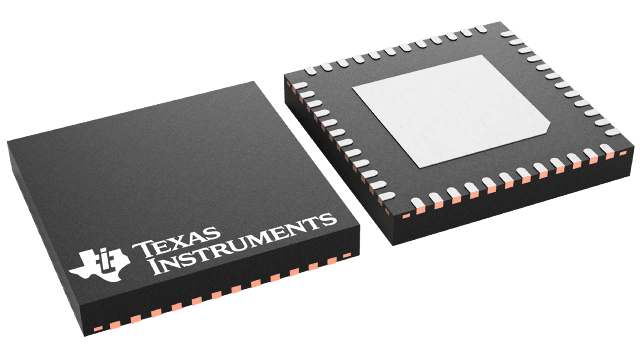

TPS65186RGZR


YeeHing #: Y012-TPS65186RGZR
Inventory: 2600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS65186RGZR Texas Instruments - Yeehing Electronics

PMIC for E-Ink® Vizplex™ Enabled Electronic Paper Display

Pricing (USD)

Quantity Unit Price
1 — 99 3.779
100 — 249 3.312
250 — 999 2.322
1,000 + 1.07

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Management Specialized - PMIC
RoHS Y
Output Voltage Range 16 V
Output Current 120 mA
Input Voltage Range 3 V to 6 V
Input Current 5.5 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case VQFN-48
Type eInk Bias
Packaging Reel
Operating Temperature Range - 40 C to + 85 C
Series TPS65186
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 3 V to 6 V
Pd - Power Dissipation 2 W
Product Type Power Management Specialized - PMIC
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Unit Weight 0.004938 oz

For more information, please refer to datasheet

Documents

TPS65186RGZR Datasheet

More Information

The TPS65186 device is a single-chip power supply designed to for E Ink Vizplex displays used in portable e-reader applications, and the device supports panel sizes up to 9.7 inches and greater. Two high-efficiency DC-DC boost converters generate ±16-V rails that are boosted to 22 V and –20 V by two change pumps to provide the gate driver supply for the Vizplex panel. Two tracking LDOs create the ±15-V source driver supplies that support up to 120-mA of output current. All rails are adjustable through the I2C interface to accommodate specific panel requirements.
