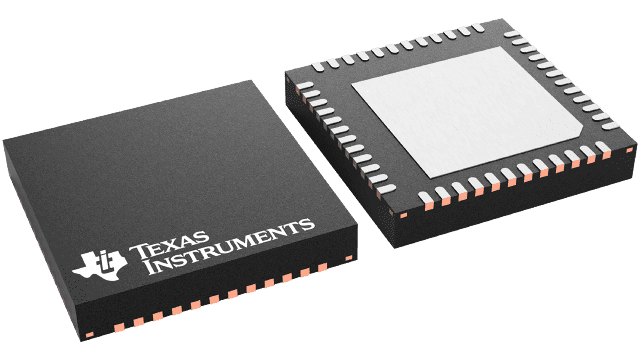

TPS65217ARSLT


YeeHing #: Y012-TPS65217ARSLT
Inventory: 6800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS65217ARSLT Texas Instruments - Yeehing Electronics

Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver

Pricing (USD)

Quantity Unit Price
1 — 99 4.721
100 — 249 3.849
250 — 999 3.025
1,000 + 1.80

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Management Specialized - PMIC
RoHS Y
Output Current 2 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Mounting Style SMD/SMT
Package / Case VQFN-48
Packaging Reel
Application AM335x
Operating Temperature Range - 40 C to + 105 C
Series TPS65217A
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 700 mA
Product Type Power Management Specialized - PMIC
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.004938 oz

For more information, please refer to datasheet

Documents

TPS65217ARSLT Datasheet

More Information

The TPS65217x is a single-chip power management IC (PMIC) specifically designed to power the AM335x ARM® Cortex®-A8 processor in portable and 5-V line-powered applications. The PMIC device provides a linear battery charger for single-cell Li-ion and Li-polymer batteries, dual-input power path, three step-down converters, four low-dropout (LDO) regulators, and a high-efficiency boost converter to power two strings of up to 10 LEDs each. The system can be supplied by any combination of USB port, 5-V AC adaptor, or Li-Ion battery. The device is characterized across a –40°C to +105°C temperature range which makes it suitable for industrial applications. Three high-efficiency 2.25-MHz step-down converters can providing the core voltage, memory, and I/O voltage for a system. The TPS65217x device comes in a 48-pin leadless package (6-mm × 6-mm VQFN) with a 0.4-mm pitch.
