TPS65217DRSLR Texas Instruments - Yeehing Electronics

Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver

Pricing (USD)

Quantity	Unit Price
1 — 99	3.598
100 — 249	3.152
250 — 999	2.21
1,000 +	1.65

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Current	1.2 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT

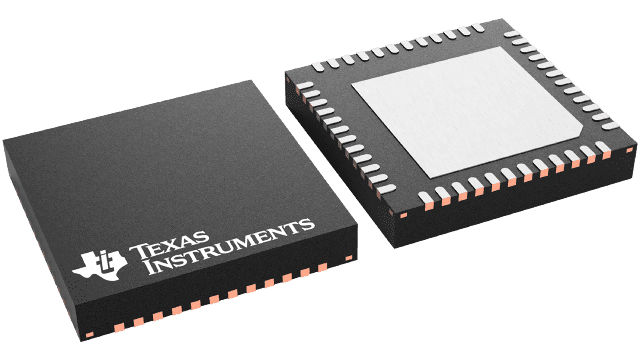

Package / Case	VQFN-48
Packaging	Reel
Application	AM335x
Operating Temperature Range	- 40 C to + 105 C
Series	TPS65217D
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	2.5 A
Operating Supply Voltage	2.7 V to 5.8 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004938 oz

For more information, please refer to datasheet

Documents

TPS65217DRSLR Datasheet

More Information

The TPS65217x is a single-chip power management IC (PMIC) specifically designed to power the AM335x ARM® Cortex®-A8 processor in portable and 5-V line-powered applications. The PMIC device provides a linear battery charger for single-cell Li-ion and Li-polymer batteries, dual-input power path, three step-down converters, four low-dropout (LDO) regulators, and a high-efficiency boost converter to power two strings of up to 10 LEDs each. The system can be supplied by any combination of USB port, 5-V AC adaptor, or Li-Ion battery. The device is characterized across a –40°C to +105°C temperature range which makes it suitable for industrial applications. Three high-efficiency 2.25-MHz step-down converters can providing the core voltage, memory, and I/O voltage for a system. The TPS65217x device comes in a 48-pin leadless package (6-mm × 6-mm VQFN) with a 0.4-mm pitch.
