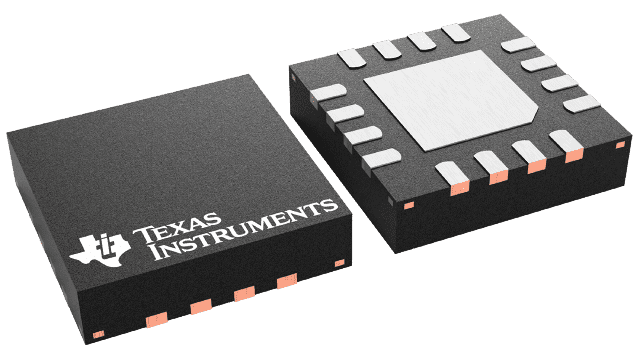

TPS65281RGVT Texas Instruments - Yeehing Electronics
4.5V to 18V, 3A, Precision Adjustable Current Limited Power Distribution Switch
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.792 |
100 — 249 | 1.57 |
250 — 999 | 1.101 |
1,000 + | 0.62 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFN-16 |
Output Voltage | 17 V |
Output Current | 2 A, 4 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 18 V |
Topology | Buck |
Input Voltage MIN | 4.5 V |
Switching Frequency | 1.4 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS65281 |
Packaging | Reel |
Height | 1 mm |
Input Voltage | 4.5 V to 18 V |
Length | 4 mm |
Operating Temperature Range | - 40 C to + 125 C |
Product | Voltage Regulators |
Type | Voltage Converter |
Width | 4 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Current | 800 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.001623 oz |
For more information, please refer to datasheet
Documents
TPS65281RGVT Datasheet |
More Information
The TPS65281/TPS65281-1 incorporates an N-channel back-to-back power MOSFET switch and a monolithic buck converter. The device is intended to provide a total power distribution solution for digital TV, set-top boxes, tablet PC and VOIP phones etc applications, where precision current limiting is required or heavy capacitive load or short circuit are encountered.
