Texas Instruments
TPS65295RJER
TPS65295RJER
Regular price
$0.90 USD
Regular price
Sale price
$0.90 USD
Unit price
per
Couldn't load pickup availability
TPS65295RJER Texas Instruments - Yeehing Electronics
4.5-V to 18-V VIN complete DDR4 memory power solution
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.586 |
| 100 — 249 | 2.266 |
| 250 — 999 | 1.588 |
| 1,000 + | 0.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| Output Voltage Range | - 0.3 V to 20 V |
| Output Current | 8 A |
| Input Voltage Range | 3 V to 5.5 V, 4.5 V to 18 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |

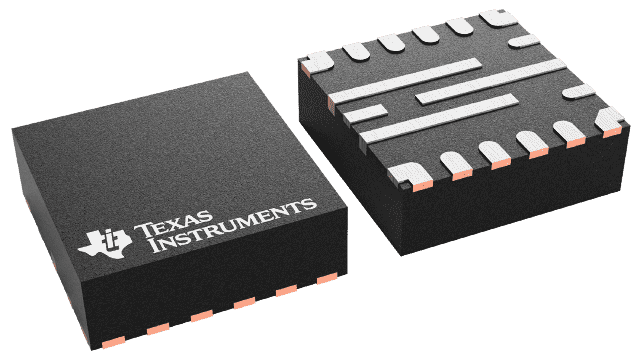

| Package / Case | VQFN-18 |
| Type | DDR4 Memory Power Solution |
| Packaging | Reel |
| Product | PMICs |
| Series | TPS65295 |
| Brand | Texas Instruments |
| Operating Supply Current | 150 uA |
| Operating Supply Voltage | 3 V to 5.5 V, 4.5 V to 18 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS65295RJER Datasheet |
More Information
The TPS65295 device provides a complete power solution for DDR4 memory system with the lowest total cost and minimum space. It meets the JEDEC standard for DDR4 power-up and power-down sequence requirement. The TPS65295 integrates two synchronous buck converters (VPP and VDDQ) and a 1-A sink and source tracking LDO (VTT) and a buffered low noise reference (VTTREF). The TPS65295 employs D-CAP3™ mode coupled with 600-kHz switching frequency for ease-of-use, fast transient, and support for ceramic output capacitors without an external compensation circuit.
