Texas Instruments

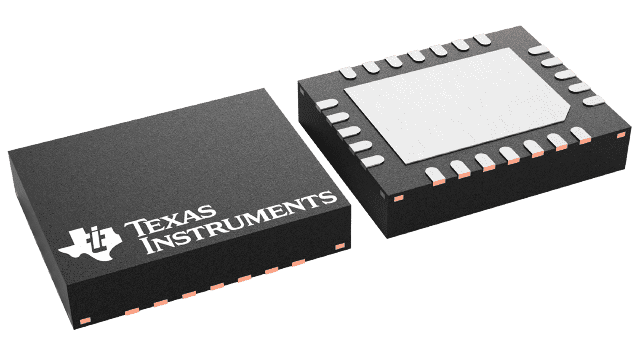

TPS65300QRHFRQ1
TPS65300QRHFRQ1
Regular price
$4.46 USD
Regular price
Sale price
$4.46 USD
Unit price
per
Couldn't load pickup availability
TPS65300QRHFRQ1 Texas Instruments - Yeehing Electronics
Automotive 5.6V to 40V, 1.2A buck converter with 3 LDOs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.137 |
| 100 — 249 | 3.625 |
| 250 — 999 | 2.542 |
| 1,000 + | 4.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Application | TMS570, C28xxx |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | TPS65300-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5.6 V to 40 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| TPS65300QRHFRQ1 Datasheet |
More Information
The TPS65300-Q1 power supply is a combination of a single switch-mode buck power supply and three linear regulators. This device is a monolithic high-voltage switching regulator with an integrated 1.2-A peak current switch, 45-V power MOSFET, and one low-voltage linear regulator and two voltage-regulator controllers.
