Texas Instruments
TPS65320DQPWPRQ1
TPS65320DQPWPRQ1
Regular price
$0.49 USD
Regular price
Sale price
$0.49 USD
Unit price
per
Couldn't load pickup availability

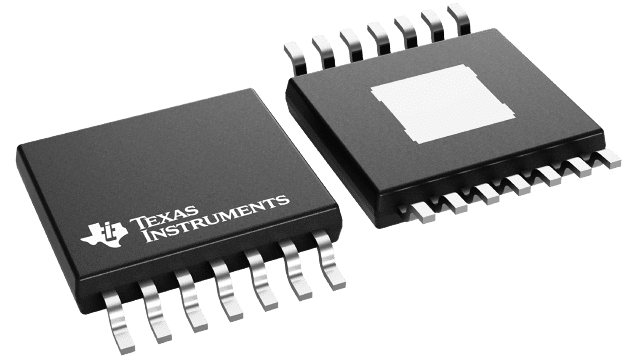

TPS65320DQPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 3.6V to 36V, 3.2A buck converter with auto-sourced 280mA LDO regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.515 |
| 100 — 249 | 1.328 |
| 250 — 999 | 0.931 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Voltage Range | 1.1 V to 20 V |
| Output Current | 3.2 A |
| Input Voltage Range | 3.6 V to 36 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-14 |
| Type | Step Down Converter Plus LDO |
| Packaging | Reel |
| Application | Generic |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | PMICs |
| Series | TPS65320D-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.6 V to 36 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003055 oz |
For more information, please refer to datasheet
Documents
| TPS65320DQPWPRQ1 Datasheet |
More Information
The TPS65320D-Q1 device is a combination of a high-VIN DC-DC step-down converter, referred to as the buck regulator, with an adjustable switch-mode frequency from 100-kHz to 2.5-MHz, and a high-VIN 280-mA low-dropout (LDO) regulator. The input range is 3.6 V to 36 V for the buck regulator, and 3 V to
