Description

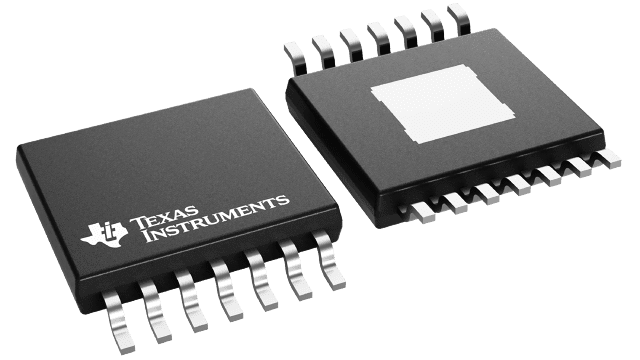

TPS65321AQPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 3.6V to 36V, 3.2A Buck Converter with Wide Vin 280mA LDO Regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.818 |
100 — 249 | 1.593 |
250 — 999 | 1.117 |
1,000 + | 2.40 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Management Specialized - PMIC |
RoHS | Y |
Output Voltage Range | 1.1 V to 20 V |
Output Current | 3.2 A |
Input Voltage Range | 3 V to 36 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-14 |
Type | Buck Converter with LDO Regulator |
Qualification | AEC-Q100 |
Packaging | Reel |
Application | Generic |
Operating Temperature Range | - 40 C to + 125 C |
Product | Step Down Converter IC |
Series | TPS65321A-Q1 |
Brand | Texas Instruments |
Development Kit | TPS65321EVM |
Moisture Sensitive | Yes |
Product Type | Power Management Specialized - PMIC |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
TPS65321AQPWPRQ1 Datasheet |
More Information
The TPS65321A-Q1 device is a combination of a high-VIN DC-DC step-down converter, referred to as the buck regulator, with an adjustable switch-mode frequency from 100-kHz to 2.5-MHz, and a high-VIN 280-mA low-dropout (LDO) regulator. The input range is 3.6 V to 36 V for the buck regulator, and 3 V to
