TPS65561RGTR Texas Instruments - Yeehing Electronics

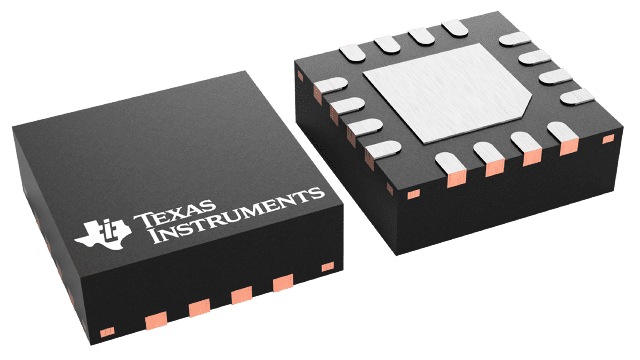

Integrated photo flash charger and IGBT driver with 2.2A Iout

Pricing (USD)

Quantity	Unit Price
1 — 99	1.85
100 — 249	1.528
250 — 999	1.098
1,000 +	0.66

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Current	1.1 A to 2.2 A
Input Voltage Range	1.6 V to 12 V
Minimum Operating Temperature	- 35 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-16
Type	Photo Flash Charger
Packaging	Reel
Operating Temperature Range	- 35 C to + 85 C
Series	TPS65561
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	1.6 V to 12 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000850 oz

For more information, please refer to datasheet

Documents

TPS65561RGTR Datasheet

More Information

This device offers a complete solution for charging a photo flash capacitor from a battery input, and subsequently discharging the capacitor to a xenon flash tube. The device has an integrated voltage reference, power switch, IGBT driver, and control logic blocks for capacitor charging applications and driving IGBT applications. Compared with discrete solutions, this device reduces the component count, shrinks the solution size, and eases designs for xenon tube applications. Additional advantages are a fast charging time and high efficiency from an optimized PWM control algorithm.
