Texas Instruments

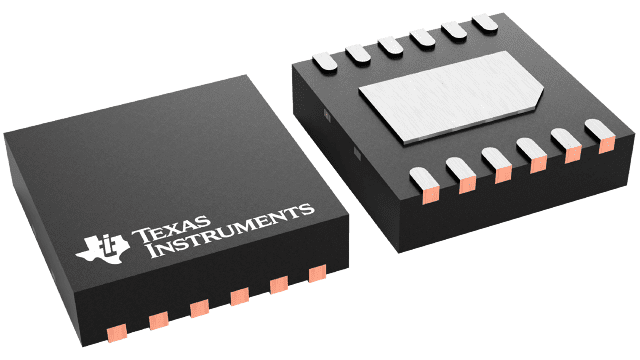

TPS65631DPDR
TPS65631DPDR
Regular price
$0.74 USD
Regular price
Sale price
$0.74 USD
Unit price
per
Couldn't load pickup availability
TPS65631DPDR Texas Instruments - Yeehing Electronics
Dual Outputs AMOLED Display Power Supply
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.145 |
| 100 — 249 | 1.88 |
| 250 — 999 | 1.318 |
| 1,000 + | 0.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TPS65631 |
| Package / Case | WSON-12 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Short Circuit Protection, Thermal Shutdown |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000617 oz |
For more information, please refer to datasheet
Documents
| TPS65631DPDR Datasheet |
More Information
The TPS65631 is designed to drive AMOLED (Active Matrix Organic Light Emitting Diode) displays requiring positive and negative supply rails. The device integrates a boost converter for VPOS and an inverting buck boost converter for VNEG and is suitable for battery-operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65631 uses a novel technology enabling excellent line transient performance.
