Texas Instruments

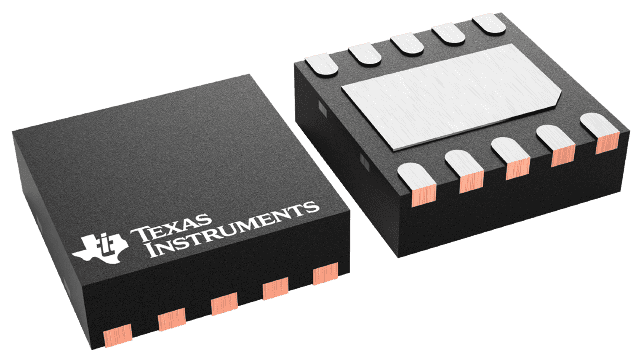

TPS65631WDSKR
TPS65631WDSKR
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability
TPS65631WDSKR Texas Instruments - Yeehing Electronics
+4.6V / -1.4 to -4.4V Dual Output 200mA AMOLED Display Pwr Supply
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.01 |
| 100 — 249 | 0.885 |
| 250 — 999 | 0.621 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TPS65631W |
| Number of Digits | - |
| Number of Segments | - |
| Mounting Style | SMD/SMT |
| Package / Case | SON-10 |
| Operating Supply Voltage | 2.9 V to 4.5 V |
| Supply Current - Max | - |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| High Level Output Current | 200 mA |
| Low Level Output Current | 200 mA |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000921 oz |
For more information, please refer to datasheet
Documents
| TPS65631WDSKR Datasheet |
More Information
The TPS65631W is designed to drive AMOLED (Active Matrix Organic Light Emitting Diode) displays requiring positive and negative supply rails. The device integrates a boost converter for VPOS and an inverting buck boost converter for VNEG and is suitable for battery-operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65631W uses a novel technology enabling excellent line transient performance.
