Texas Instruments

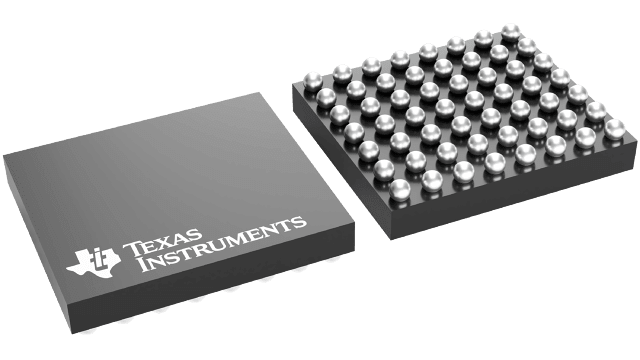

TPS65642YFFR
TPS65642YFFR
Regular price
$0.64 USD
Regular price
Sale price
$0.64 USD
Unit price
per
Couldn't load pickup availability
TPS65642YFFR Texas Instruments - Yeehing Electronics
LCD Bias with Integrated Gamma Reference for Notebook PCs and Tablet PCs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.848 |
| 100 — 249 | 1.62 |
| 250 — 999 | 1.136 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Drivers |
| RoHS | Y |
| Series | TPS65642 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-56 |
| Packaging | Reel |
| Features | 14 channel gamma buffer, I2C |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Product Type | LCD Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| TPS65642YFFR Datasheet |
More Information
The TPS65642 is a compact LCD bias solution primarily intended for use in Notebook and Tablet PCs. The device comprises two boost converters to supply the LCD panels source driver and gate driver/level shifter; two buck converters and an LDO linear regulator to supply the systems logic voltages; a programmable VCOM generator with two high-speed amplifiers; 14-channel gamma voltage correction; and a gate voltage shaping function.
