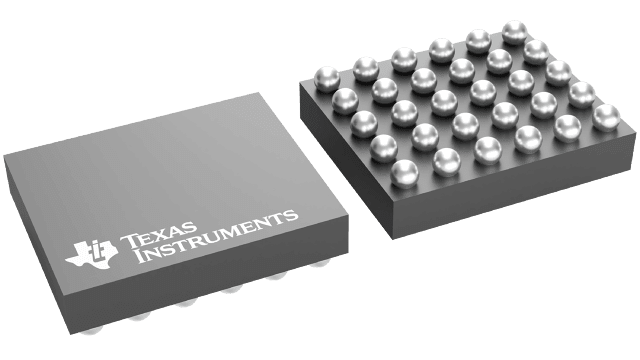

TPS657120YFFR


YeeHing #: Y012-TPS657120YFFR
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS657120YFFR Texas Instruments - Yeehing Electronics

RF frontend Power Management IC (PMIC)

Pricing (USD)

Quantity Unit Price
1 — 99 4.983
100 — 249 4.367
250 — 999 3.062
1,000 + 1.73

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Management Specialized - PMIC
RoHS Y
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case DSBGA-30
Packaging Reel
Application TegraAP40
Operating Temperature Range - 40 C to + 85 C
Series TPS657120
Brand Texas Instruments
Product Type Power Management Specialized - PMIC
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000229 oz

For more information, please refer to datasheet

Documents

TPS657120YFFR Datasheet

More Information

The TPS657120 provides three configurable step-down converters with up to 2-A output current.This device also has 2 LDO regulators. LDO1 can be supplied from either the input voltage directly or from a pre-regulated supply such as DCDC1 or DCDC2. The input voltage to LDO2 is used as an analog supply input and therefore must be tied to the input voltage at the same voltage level with VINDCDC1/2 and VINDCDC3. The internal power-up and power-down controller is configurable and can support any power-up/power-down sequences (OTP based). All LDOs and DCDC converters are controllable by a MIPI RFFE compatible interface, by pins PWRON, CLK_REQ1 and CLK_REQ2, or both. In addition, there is a nRESET as well as a RFFE address select (ADR_SELECT) input which can alternatively be used as general purpose I/Os with a 1-mA sink capability. The TPS657120 comes in a 6-ball × 5-ball DSBGA package (2.5 mm × 2.3 mm) with a 0.4-mm pitch.
