Texas Instruments
TPS657201YFFR
TPS657201YFFR
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability

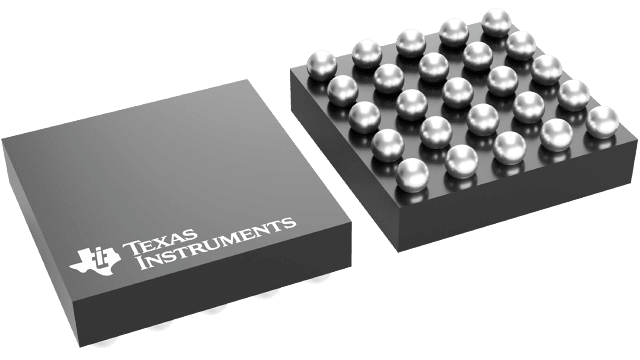

TPS657201YFFR Texas Instruments - Yeehing Electronics
2-Channel Power Management IC (PMIC) with battery charger, one step-down converter and one LDO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.929 |
| 100 — 249 | 1.593 |
| 250 — 999 | 1.144 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | Li-Ion |
| Output Voltage | 0.6 V to 5.6 V |
| Output Current | 400 mA |
| Operating Supply Voltage | 4.35 V to 28 V |
| Operating Supply Current | 33 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-25 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS65720 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | TPS65720EVM-515 |
| Pd - Power Dissipation | 1.8 W |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000176 oz |
For more information, please refer to datasheet
Documents
| TPS657201YFFR Datasheet |
More Information
The TPS6572x device is a small power management unit targeted for Bluetooth headsets or other portable low-power consumer-end equipments. The device contains an USB friendly Lithium-Ion battery charger, a highly efficient step-down converter, a low-dropout linear regulator, and additional supporting functions. The device is controlled by an I2C interface. Several settings can be customized by the use of nonvolatile memory which is factory programmed.
