Texas Instruments
TPS65811RTQR
TPS65811RTQR
Regular price
$4.55 USD
Regular price
Sale price
$4.55 USD
Unit price
per
Couldn't load pickup availability
TPS65811RTQR Texas Instruments - Yeehing Electronics
integrated single cell Li-ion battery and power Management IC (PMIC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.79 |
| 100 — 249 | 9.425 |
| 250 — 999 | 7.267 |
| 1,000 + | 4.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 1.25 V to 3.3 V |
| Output Current | 100 mA to 1.5 A |
| Operating Supply Voltage | 3 V to 18 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |

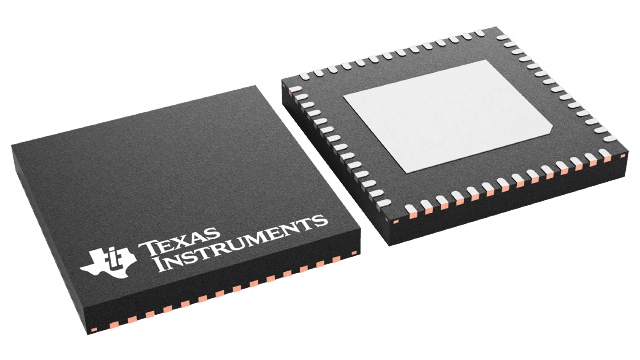

| Package / Case | QFN-56 |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 8 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | TPS65811 |
| Type | Power Management System |
| Width | 8 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.007055 oz |
For more information, please refer to datasheet
Documents
| TPS65811RTQR Datasheet |
More Information
The TPS65810 device provides an easy-to-use, fully-integrated solution for handheld devices, integrating charge management, multiple regulated power supplies, system management, and display functions in a small, thermally-enhanced 8-mm × 8-mm package. The high level of integration enables space savings of 70% of the typical board area when compared to equivalent discrete solutions, while implementing a high-performance and flexible solution that is portable across multiple platforms.
