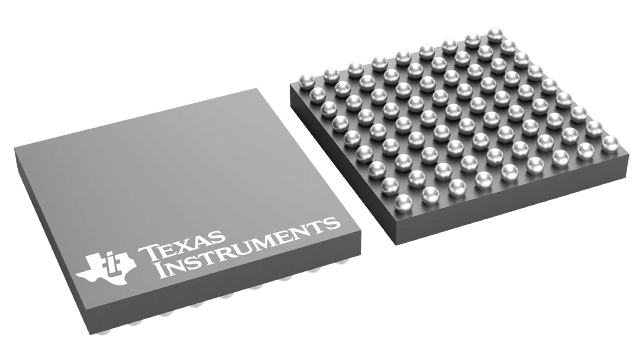

TPS659127YFFR Texas Instruments - Yeehing Electronics

Power Management IC (PMIC) with 4DC/DCs, 10 LDOs, 3 LED outputs & 32kHz RC oscillator

Pricing (USD)

Quantity	Unit Price
1 — 99	5.343
100 — 249	4.356
250 — 999	3.424
1,000 +	1.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Voltage Range	0.5 V to 3.8 V
Output Current	2.5 A
Input Voltage Range	2.7 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-81
Type	PMU
Packaging	Reel
Application	Icera i450, 3100, 6200, FourGee 3600/6300
Operating Temperature Range	- 40 C to + 85 C
Product	PMIC
Series	TPS659127
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	8 mA
Operating Supply Voltage	2.7 V to 5.5 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	1500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.007055 oz

For more information, please refer to datasheet

Documents

TPS659127YFFR Datasheet

More Information

The TPS65912x device provides four configurable step-down converters with up to 2.5-A output current for memory, processor core, I/O, or preregulation of LDOs. The device also contains ten LDO regulators for external use. These LDOs can be supplied from either a battery or a preregulated supply. Power-up or power-down controller is configurable and can support any power-up or power-down sequences
