Texas Instruments

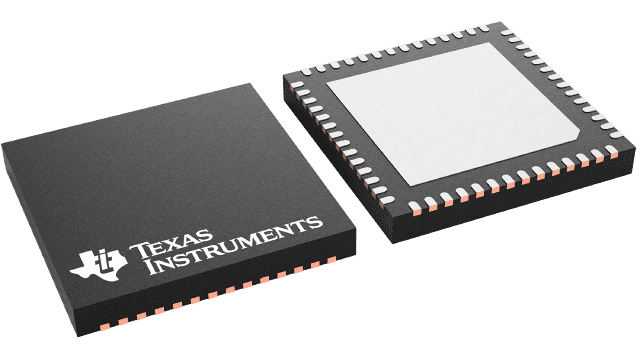

TPS65981ABIRTQT
TPS65981ABIRTQT
Couldn't load pickup availability
TPS65981ABIRTQT Texas Instruments - Yeehing Electronics
USB Type-C™ and USB PD controller, power switch, and high-speed multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.918 |
| 100 — 249 | 7.271 |
| 250 — 999 | 5.715 |
| 1,000 + | 3.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-56 |
| Series | TPS65981 |
| Product | USB Controllers |
| Type | Type-C |
| Port Type | DFP |
| Standard | USB 2.0 |
| Speed | High Speed |
| Data Rate | 1.5 Mb/s |
| Supply Voltage - Min | 1.7 V |
| Supply Voltage - Max | 5.5 V |
| Operating Supply Current | 6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C, USB |
| Development Kit | TPS65981EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V, 5 V |
| Product Type | USB Interface IC |
| Protocol Supported | Alternate Mode |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.006709 oz |
For more information, please refer to datasheet
Documents
| TPS65981ABIRTQT Datasheet |
More Information
The TPS65981 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for notebook applications. The TPS65981 integrates fully managed power paths with robust protection for a complete USB-C PD solution. The TPS65981 integrates a high speed multiplexer which is dependent the USB Type-C cable orientation that the CC pins provide. The multiplexer passes through side-band use data for alternate modes. The TPS65981 has a QFN package for reliable manufacturing with 0.5-mm Pitch and 2-Layer PCB compatibility and has an extended (industrial) temperature range. The TPS65981 is USB PD 2.0 certified which is no longer certifiable through USB IF.
