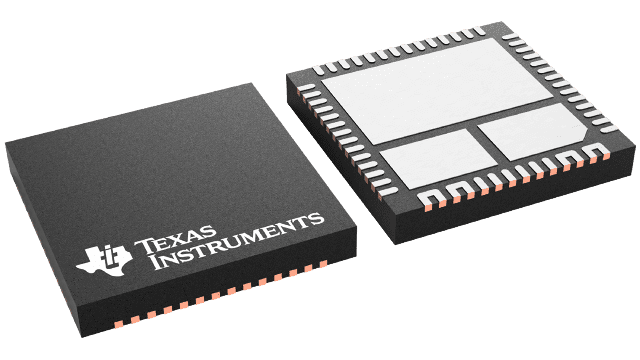

TPS65987DDHRSHR Texas Instruments - Yeehing Electronics

USB Type-C™ and USB PD controller with integrated power switches

Pricing (USD)

Quantity	Unit Price
1 — 99	3.537
100 — 249	3.099
250 — 999	2.173
1,000 +	0.86

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-56
Series	TPS65987D
Product	USB Controllers
Type	Type-C
Port Type	DFP
Standard	USB 3.0
Speed	Super Speed
Data Rate	300 kb/s
Supply Voltage - Min	3.135 V
Supply Voltage - Max	3.45 V
Operating Supply Current	45 uA
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 75 C
Packaging	Reel
Brand	Texas Instruments
Interface Type	I2C
Number of Ports	3 Port
Development Kit	TPS65987-90EVM
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Product Type	USB Interface IC
Protocol Supported	Alternate Mode
Factory Pack Quantity	2500
Subcategory	Interface ICs
Unit Weight	0.004501 oz

For more information, please refer to datasheet

Documents

TPS65987DDHRSHR Datasheet

More Information

The TPS65987D is a stand-alone USB Type-C and Power Delivery (PD) controller providing cable plug and orientation detection for a single USB Type-C connector. Upon cable detection, the TPS65987D communicates on the CC wire using the USB PD protocol. When cable detection and USB PD negotiation are complete, the TPS65987D enables the appropriate power path and configures alternate mode settings for external multiplexers.
